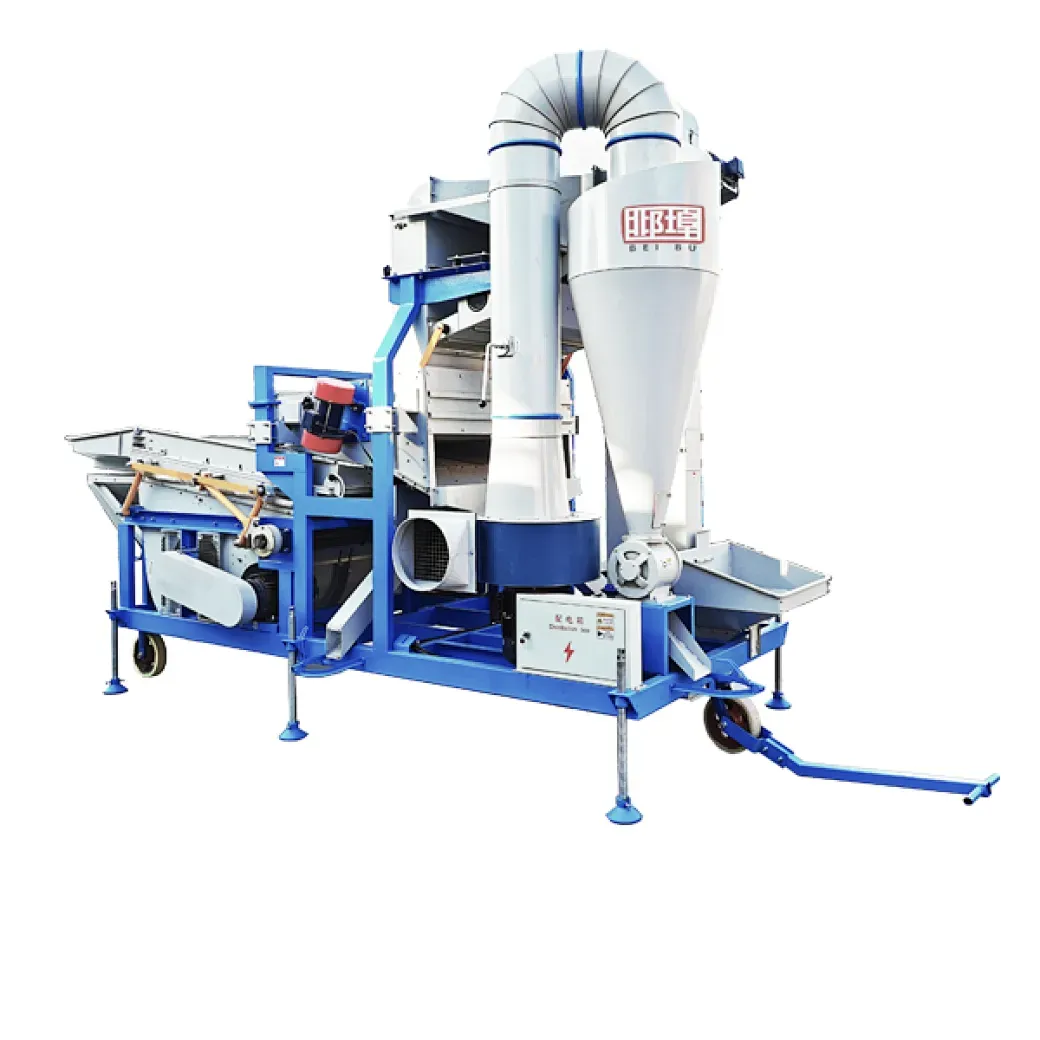

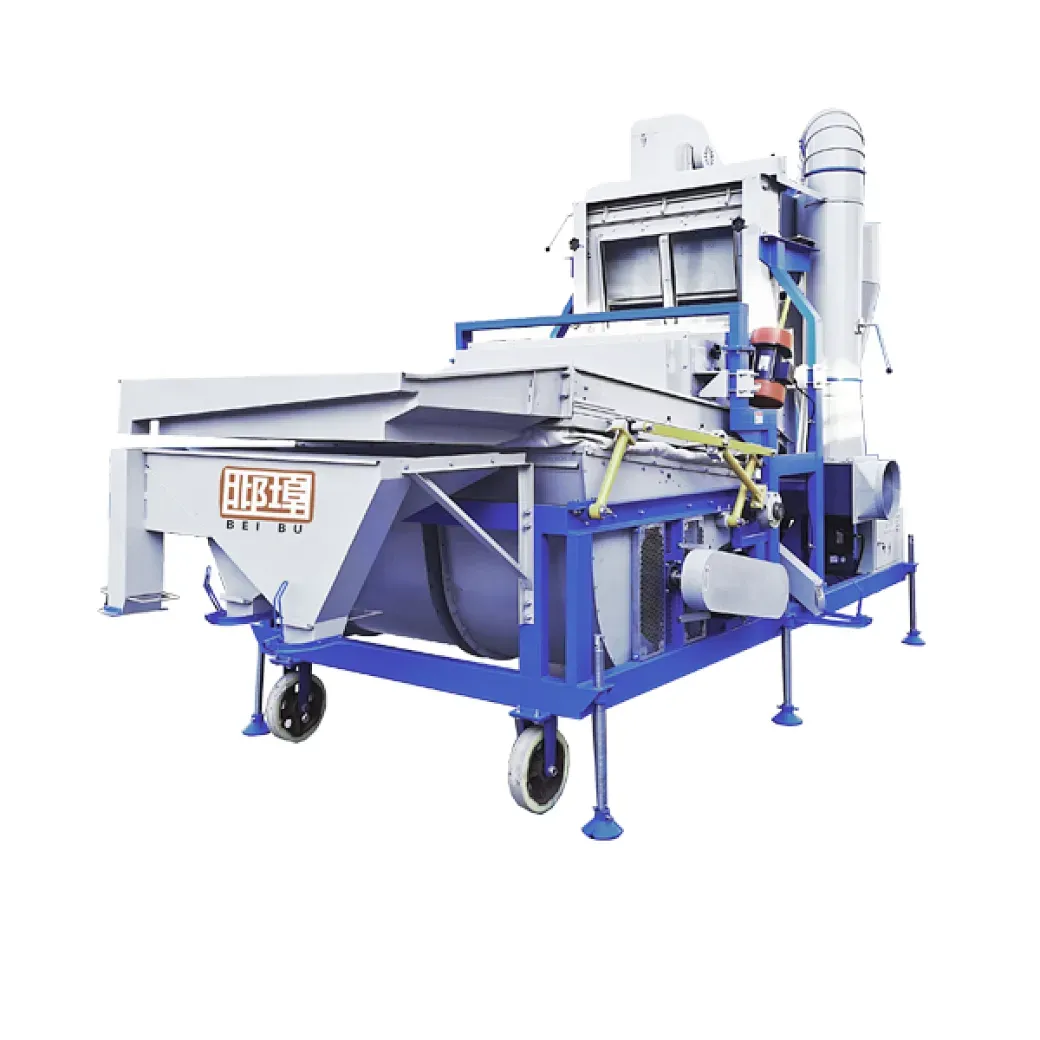

Automatic Precision Air Screen Cleaner with Gravity Table

Precision Grain and Seed Cleaning with Advanced Technology

In the demanding landscape of modern agriculture and food processing, the purity and quality of grains and seeds are paramount. Achieving optimal cleanliness directly impacts storage stability, germination rates, and end-product value. This requires sophisticated machinery capable of separating subtle impurities with high efficiency. One such indispensable solution is the air screen cleaner with gravity table, a dual-function system engineered to deliver superior cleaning and grading results. This comprehensive guide explores its operational intricacies, technical advantages, application versatility, and overall contribution to agricultural productivity.

Operational Process Flow: Dual-Stage Purification

The 5XFZ-25SC Air Screen Cleaner with Gravity Table integrates two primary cleaning mechanisms: air-screen separation and gravity separation. This synergistic approach ensures comprehensive removal of various impurities, from light chaff to heavy stones, and precise grading of seeds based on density.

Stage 1: Air-Screen Pre-Cleaning and Fine Cleaning

• Feeding: Raw grain or seeds are fed into the machine via a vibratory feeder, ensuring an even and controlled flow.
• Aspiration System: As material enters, a powerful aspiration channel employs an upward airflow to lift and remove lighter impurities such as dust, chaff, empty shells, and very light kernels. This initial separation significantly reduces the load on subsequent screens.
• Screening Deck: The material then passes over multiple layers of oscillating screens. These screens are arranged in series, typically with larger perforations at the top to remove coarse impurities (straw, large stones) and progressively smaller perforations below to separate fine impurities (sand, small broken kernels) and undersized seeds. The main product, meeting the desired size specification, passes through the designated screen.
• Final Aspiration: A secondary aspiration channel often follows the screening stage to ensure any remaining light impurities attached to the main product are removed.

Stage 2: Gravity Separation for Density-Based Grading

• Gravity Table Feed: The cleaned material from the air-screen section is then directed to the gravity table, which is a key differentiator for this advanced system.
• Inclined Vibrating Deck: The gravity table features an oscillating, inclined deck covered with a perforated surface. Air is blown upwards through these perforations, creating a fluidizing effect on the material.
• Density Separation: Due to the combined action of vibration, inclination, and upward airflow, particles are stratified by density. Heavier particles (good seeds, stones, metallic impurities) sink to the deck surface, while lighter particles (shriveled seeds, insect-damaged kernels, inert material) are suspended in the air cushion.
• Grading Zones: The vibration causes the heavier particles to travel uphill (against the incline) and discharge from one end, while the lighter particles "float" downhill and are discharged from another. Intermediate zones can collect different grades of seeds, enabling highly precise sorting based on specific gravity. This is crucial for achieving high germination rates and uniform product quality.

The synergy of air-screen and gravity separation positions the air screen cleaner with gravity table as a robust solution for diverse cleaning challenges.

Manufacturing Excellence and Durability

The construction of a high-performance air screen cleaner with gravity table like the 5XFZ-25SC involves precision engineering. Key components are typically manufactured from robust materials such as high-grade carbon steel or stainless steel, selected for their wear resistance and corrosion resistance. Manufacturing processes include CNC machining for tight tolerances, laser cutting for precise component fabrication, and professional welding techniques to ensure structural integrity. Critical moving parts, such as vibratory motors and fan impellers, undergo stringent balancing and quality control. All machines adhere to international testing standards like ISO 9001 for quality management, ensuring reliability and a long service life of typically 10-15 years under proper maintenance. This robust construction delivers significant advantages in scenarios demanding energy saving and consistent performance.

Industry Trends in Grain and Seed Processing

The agricultural processing sector is experiencing a rapid evolution driven by global food security concerns, demand for higher quality produce, and increasing automation. Key trends include:

• Enhanced Automation and IoT Integration: Modern machines are incorporating sensors and intelligent controls for real-time monitoring, remote operation, and predictive maintenance, reducing manual intervention and optimizing performance.
• Increased Precision and Purity: There is a growing demand for machines that can achieve higher purity levels with minimal loss of good product. Multi-stage cleaning systems, like the air screen cleaner with gravity table, are central to this trend.
• Energy Efficiency: With rising operational costs, manufacturers are focusing on designing equipment that consumes less power per ton of processed material, often through optimized fan designs and efficient motor technologies.
• Modularity and Customization: Processing lines are becoming more modular, allowing for easier integration of different cleaning stages and customization to handle a diverse range of crops and specific client requirements.
• Sustainability and Waste Reduction: Technologies that minimize product loss and facilitate the collection and potential repurposing of separated impurities are gaining traction.

These trends underscore the importance of robust, efficient, and versatile cleaning solutions in maintaining competitiveness and meeting market demands.

Technical Specifications: 5XFZ-25SC Model Analysis

The 5XFZ-25SC model exemplifies a high-performance air screen cleaner with gravity table, designed for significant throughput and exceptional cleaning accuracy. Its robust engineering ensures long-term reliability in demanding operational environments.

Product Specification Table: 5XFZ-25SC

These specifications highlight the robust design and high-efficiency capabilities of the 5XFZ-25SC, making it a reliable solution for various cleaning tasks.

Application Scenarios and Target Industries

The versatility of an advanced air screen cleaner with gravity table extends across numerous agricultural and processing sectors, significantly enhancing product quality and operational efficiency.

• Cereal Grain Processing: Essential for cleaning wheat, maize (corn), barley, oats, and rice. It effectively removes foreign materials, shriveled kernels, and diseased grains, crucial for flour mills, breweries, and feed manufacturers. This machine serves as a highly efficient cleaning wheat machine.
• Seed Processing and Grading: For seed companies, achieving high germination rates and seed vigor is paramount. The precision of the gravity table allows for the removal of underdeveloped, pest-damaged, or unhealthy seeds, ensuring only premium seeds are packaged. It's an indispensable component for high-quality seed production, serving as a superior bean cleaning equipment.
• Pulses and Legumes: Effectively cleans various beans (soybeans, lentils, chickpeas) and other legumes by separating stones, dirt, and foreign seeds, improving quality for human consumption and planting.
• Oilseed Processing: Used for cleaning sunflower seeds, rapeseed, sesame, and peanuts, removing impurities that could affect oil quality or processing efficiency.
• Malt Industry: Ensures uniform and clean barley for malting, directly impacting the brewing process and final beer quality.

The dual-stage cleaning capability ensures that whether the goal is preparing grain for human consumption or producing high-quality seeds for planting, the final product meets stringent industry standards.

Technical Advantages and Performance Metrics

The integrated design of the air screen cleaner with gravity table offers a compelling set of technical advantages over single-function cleaning machines.

• Superior Cleaning Efficiency: The combination of air aspiration, multi-layer sieving, and density-based gravity separation achieves an impurity removal rate exceeding 99% for light impurities and 95% for heavy foreign materials like stones, metals, and glass. This results in an unparalleled level of purity.
• Enhanced Grading Precision: The gravity table component excels at separating product based on specific gravity. This means shriveled, insect-damaged, or unhealthy seeds, which may have similar dimensions to good seeds but lower density, are effectively removed. This precision is critical for seed quality and viability.
• Versatility Across Grains: Adjustable screen sizes and airflows, coupled with customizable gravity table settings, allow the machine to handle a wide variety of grains, seeds, pulses, and spices with minimal changeover time. This makes it a truly universal automatic wheat cleaning machine.
• Reduced Product Loss: Optimized design minimizes the loss of good product into the waste streams, maximizing yield and profitability.
• Robust Construction and Longevity: Built with high-quality, wear-resistant materials and precision engineering, the machine offers exceptional durability and a long operational lifespan, reducing maintenance frequency and costs.
• Energy Efficiency: Modern designs incorporate energy-efficient motors and optimized airflow systems, leading to lower power consumption per ton of processed material, contributing to significant operational savings.
• User-Friendly Operation and Maintenance: Designed for ease of use, with accessible components for cleaning and maintenance, reducing downtime and operator training requirements.

Performance Comparison: Integrated vs. Standalone Systems

Vendor Comparison and Customized Solutions

Selecting the right supplier for an air screen cleaner with gravity table is critical. While many manufacturers offer similar equipment, discerning clients look beyond mere specifications to evaluate overall value.

Key Vendor Evaluation Criteria:

• R&D and Innovation: Leading vendors invest heavily in research and development to offer cutting-edge technology, enhancing efficiency and purity.
• Quality of Materials and Craftsmanship: The longevity and reliability of the machine depend on the quality of components and manufacturing processes, adhering to international standards like ISO 9001.
• After-Sales Support and Service: Availability of spare parts, technical assistance, and experienced service technicians are crucial for minimizing downtime.
• Customization Capabilities: The ability to tailor machine configurations (e.g., screen sizes, airflow parameters, material contact surfaces) to specific crop types and purity requirements is a significant advantage.
• Industry Experience and Reputation: Vendors with decades of experience and a strong track record of successful installations instill confidence and offer valuable application insights.

Embracing Customized Solutions

Recognizing that each client's needs are unique, providers like Beibu Cleaner specialize in delivering customized solutions. This involves a collaborative approach where engineers work with clients to:

• Analyze Specific Grain/Seed Types: Determining optimal screen perforations, air velocities, and gravity table oscillation settings for a particular crop.
• Integrate with Existing Lines: Designing the machine to seamlessly fit into current processing workflows, considering material handling and discharge points.
• Capacity Matching: Scaling the machine's capacity to meet precise throughput requirements, avoiding oversizing or undersizing.
• Material Selection: Offering options for stainless steel contact parts for highly corrosive or food-grade applications, ensuring compliance with FDA or other relevant standards.
• Automation Levels: Providing varying degrees of automation, from manual adjustments to fully integrated PLC-controlled systems with remote monitoring capabilities.

This bespoke approach ensures that clients receive an air screen cleaner with gravity table that not only meets but exceeds their operational expectations, delivering optimal return on investment.

Application Case Studies

Case Study 1: Large-Scale Wheat Mill in Eastern Europe

A prominent wheat milling company faced challenges with high ash content and foreign material in their incoming wheat, leading to reduced flour quality and increased wear on milling equipment. After integrating a 5XFZ-25SC air screen cleaner with gravity table into their intake line, they observed a significant improvement. The system effectively removed stones, metal particles, and shriveled wheat kernels that conventional screen cleaners missed. Post-installation data showed a reduction in foreign material by 98% and a 0.5% decrease in flour ash content, directly translating to a higher grade of flour and extended lifespan of their roller mills. Customer feedback emphasized the machine's robust performance and minimal operational noise.

Case Study 2: Premium Organic Seed Producer in North America

An organic seed company specializing in heirloom varieties needed to ensure exceptional seed purity and germination rates to maintain their premium market position. Their existing cleaning process struggled with distinguishing between viable and non-viable seeds of similar size. Implementing a custom-configured air screen cleaner with gravity table provided the precision required. The gravity table effectively separated underdeveloped and insect-damaged seeds, which were lighter, from the healthy, heavier seeds. This resulted in a measured 15% increase in germination rates for their processed batches and a marked reduction in customer complaints related to seed viability. The solution not only improved product quality but also reinforced their brand reputation for excellence.

Commitment to Trust and Support

Frequently Asked Questions (FAQ)

• Q: What types of grains/seeds can this machine clean?
  A: The 5XFZ-25SC is highly versatile and can clean a wide array of grains including wheat, corn, rice, barley, oats, soybeans, lentils, sunflower seeds, coffee beans, and various spices, with customizable screens.
• Q: How often do the screens need to be replaced?
  A: Screen longevity depends on material abrasiveness and usage. Typically, screens are robust and can last for several years with proper maintenance. We offer readily available replacements.
• Q: What is the typical lead time for a new unit?
  A: Standard models usually have a lead time of 4-6 weeks. Customized solutions may require 8-12 weeks depending on complexity. Specific delivery timelines are provided upon order confirmation.
• Q: Is installation support available?
  A: Yes, we provide comprehensive installation guidance, including detailed manuals, remote technical assistance, and on-site supervision or full installation services by our certified engineers if required.

Lead Time & Fulfillment

Our streamlined production process and efficient logistics ensure timely delivery. We work closely with clients from order placement to dispatch, providing transparent updates. Manufacturing lead times are typically 4-12 weeks, depending on customization and order volume. We partner with reliable shipping providers to ensure secure and efficient global delivery.

Warranty Commitments

All 5XFZ-25SC air screen cleaner with gravity table units come with a standard 12-month warranty covering manufacturing defects and critical components. Extended warranty options and service contracts are available to provide long-term peace of mind and minimize unforeseen operational interruptions.

Customer Support

Our dedicated customer support team offers 24/7 technical assistance. From initial consultation and system design to installation, operator training, and ongoing maintenance, we provide comprehensive support. This includes remote diagnostics, access to genuine spare parts, and on-site service to ensure your machinery operates at peak efficiency throughout its lifespan.

Conclusion

The air screen cleaner with gravity table represents a pinnacle in grain and seed cleaning technology, offering an integrated solution for superior purity, precise grading, and enhanced operational efficiency. As the agricultural industry continues to demand higher standards and greater automation, machines like the 5XFZ-25SC are indispensable for producers aiming to maximize quality, reduce waste, and improve profitability. By combining robust engineering with versatile application and comprehensive support, these systems are poised to remain at the forefront of post-harvest processing solutions.
