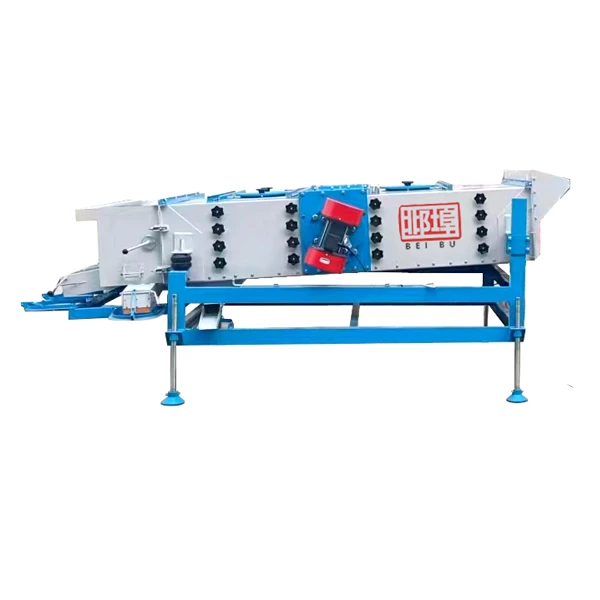

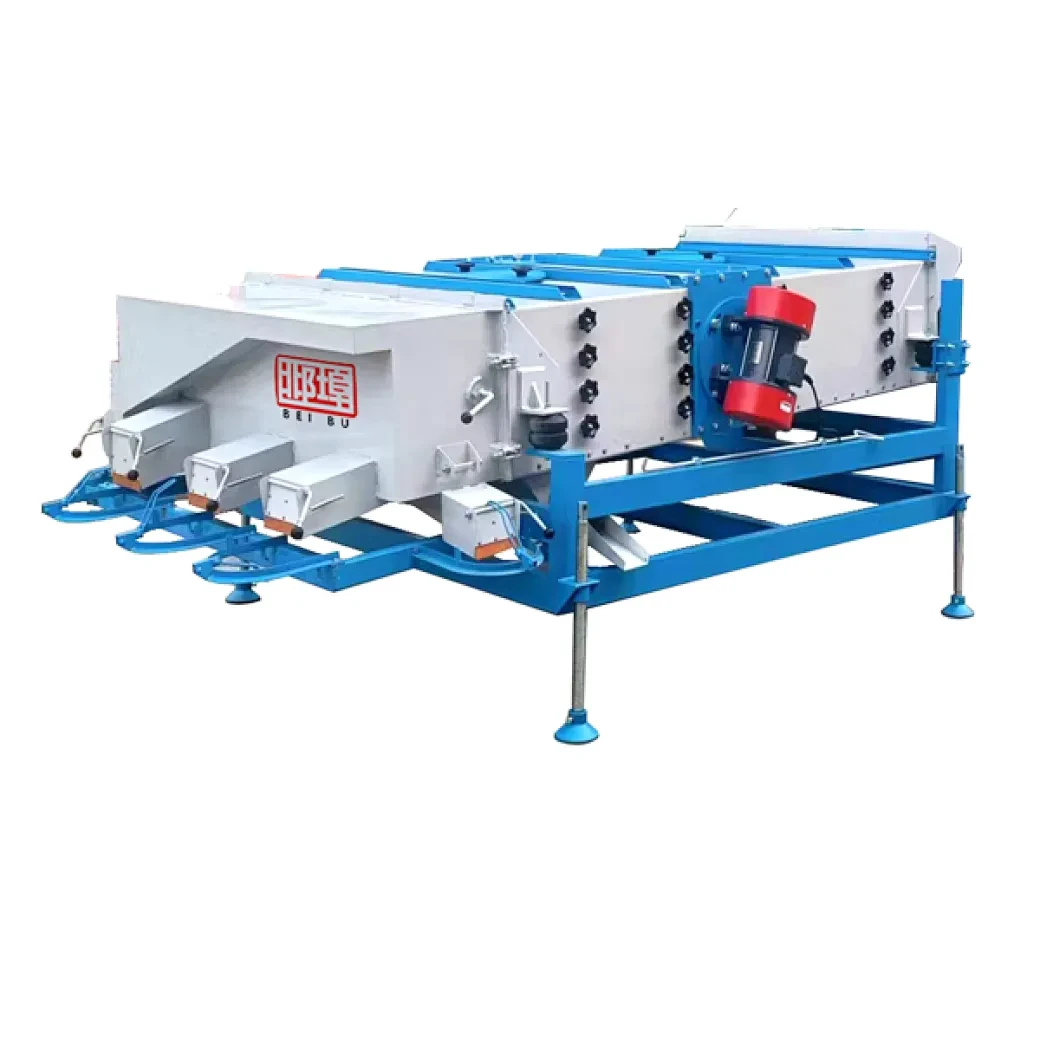

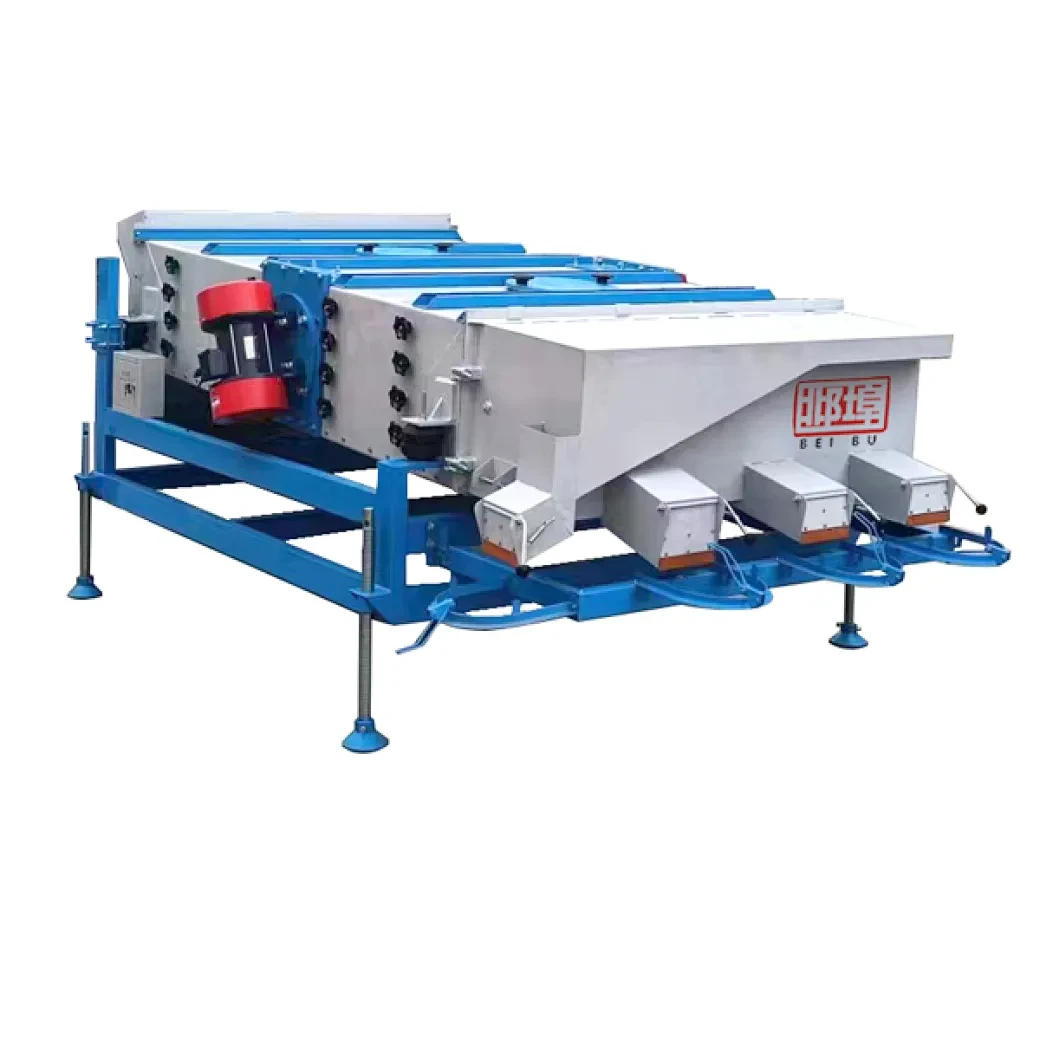

5XFJ Vibration Grader

The 5XFJ Series Vibration Grader based on the different capacity have different capacity. The output of the machine varies according to the width of the screen. At the same time, the inclination angle of the machine also has a great influence on the output. The larger the inclination angle, the greater the output, but the screening rate will be reduced.

Normally , the machine have four layers of sieves inside . some time we use them all , some times we use only 2 layer or 3 layer sieve . It will depends on the customers need and the material .

In some cases, in order to increase the capacity, we will use a special type of sieves. Its model is 5XFJ-20Y VIBRATION GRADER. This machine has 5 layers of sieves but the middle layer has no screen holes. In this way, the vibration grader box is divided into two spaces, upper and lower. In these two spaces, there are two layers of sieves respectively. When we produce and process, we use these two spaces separately, and we can have twice the output of ordinary grading screens.

 Based on the need the vibration grader can work for grading in different sizes and removing the bigger and smaller impurities out; This depends mainly on the size of the mesh. We can customize the mesh size according to your requirements, including long holes and round holes. The size is accurate to 0.1mm.

Our sieves have a self-cleaning function. In each layer of the sieve, we place some elastic balls. During the vibration of the machine, the elastic balls bounce continuously and remove the materials that are blocked in the sieve holes.

About vibration. There is a kind of vibrating grading screen that relies on the motor to drive the eccentric wheel to vibrate, and then drives the machine to vibrate. This machine is relatively slow. However, our machine uses a double-sided vibration motor, which has a relatively fast vibration frequency. Therefore, the machine has a large product and a good screening effect.
