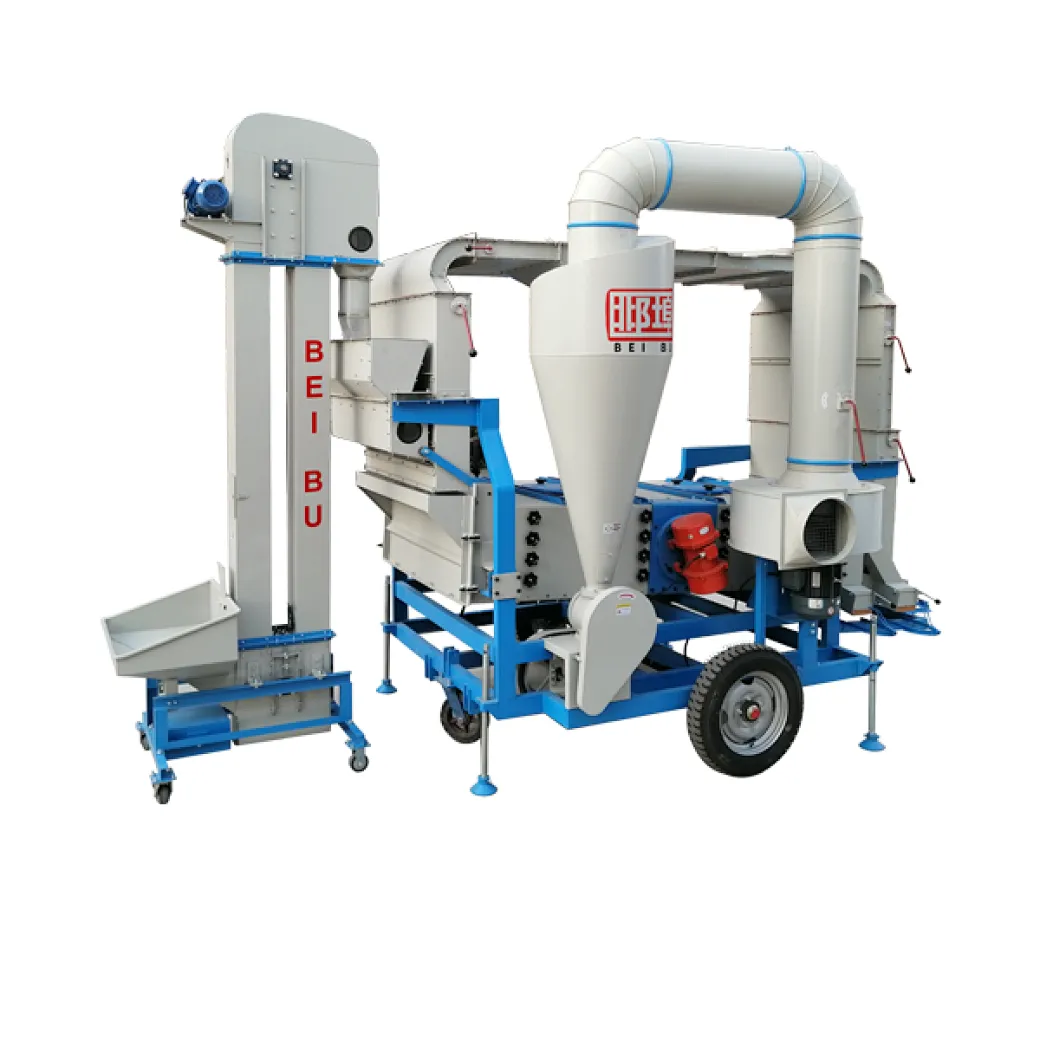

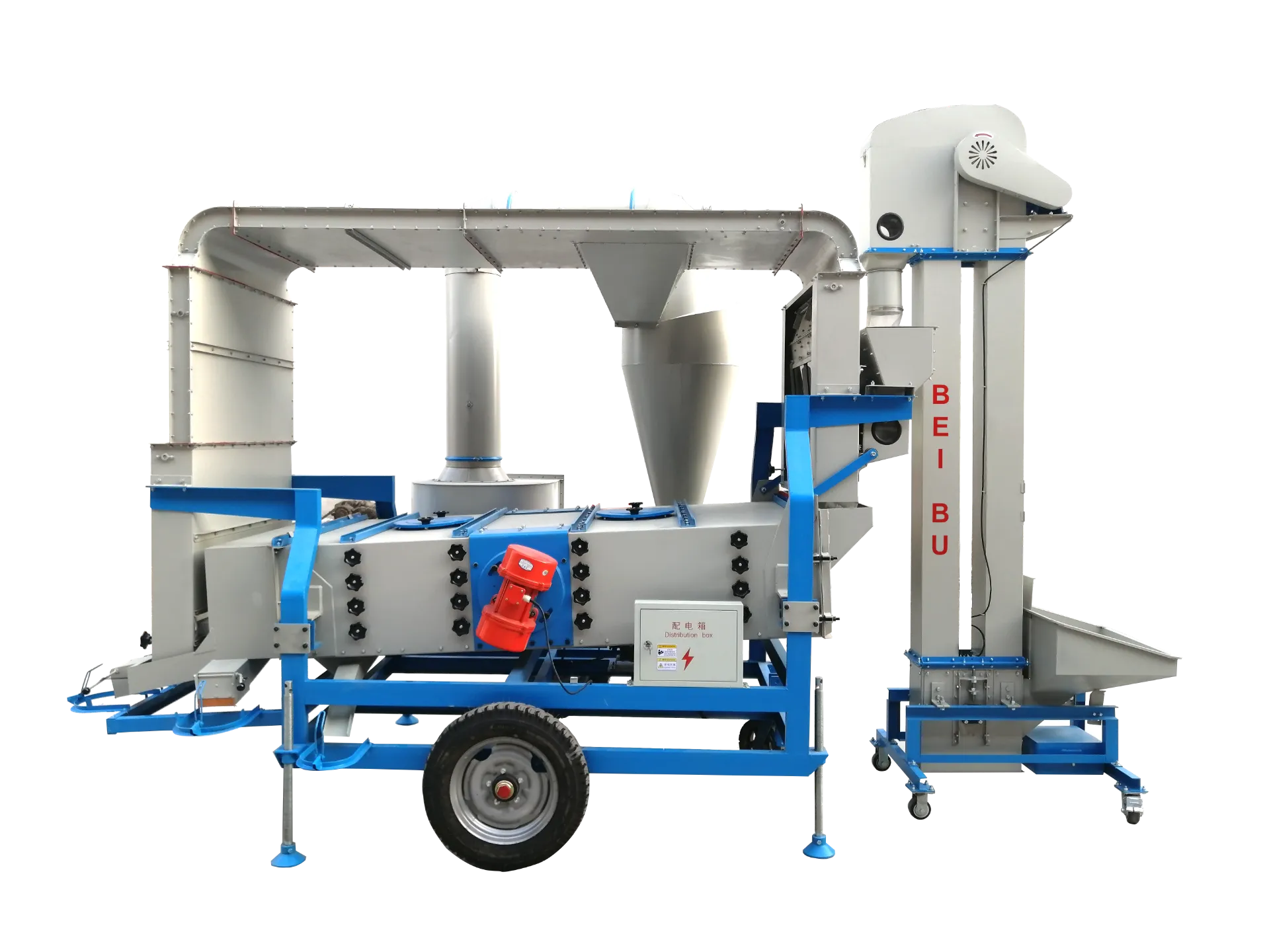

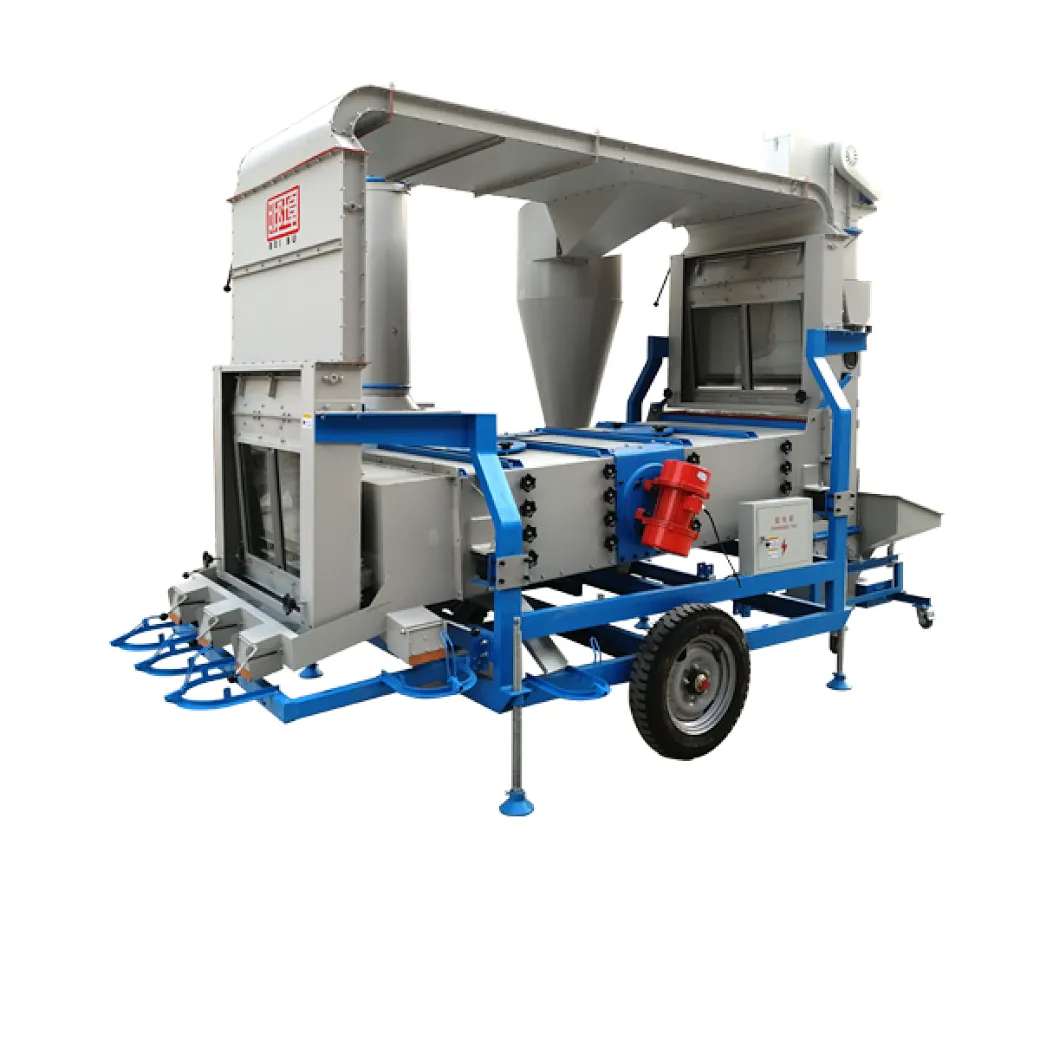

5XFS-7.5BC Double Air Screen Cleaner

5XFS-7.5BC Çift Hava Ekran Temizleyici

5XFS-7.5BC Çift Hava Ekran Temizleyici
Kapasite 3t/h susama dayalı
Saflık: ,5
Çift Hava Ekran Temizleyici
Güç:9.9KW
Ağırlık:2000kg
paylaşmak:
Ürün Detayları
Tags
5XFS-7.5BC Çift Hava Ekran Temizleyici
Read More About bean cleaner machine

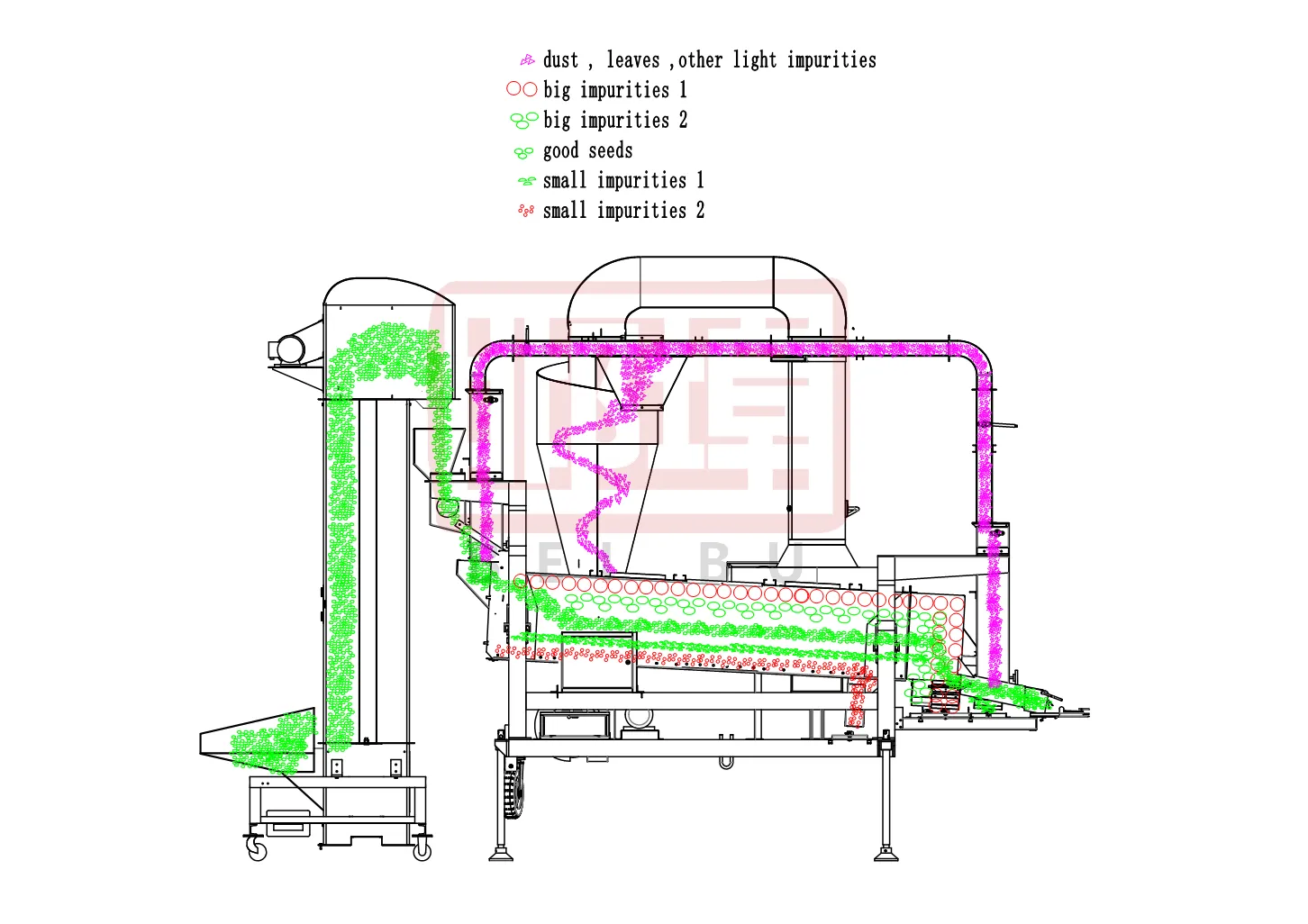

Makine Tahıl Akış Şeması

Read More About bean cleaner machine
Makine Uygulaması


5XFS-7.5BC Double Air Screen Cleaner include the two times air screen part can remove the dust and light impurities out well,with four layers sieves which can remove the bigger and smaller impurities well;

This is a machine with a long history. As early as 2010, when this machine was first launched, it has been widely praised by major sesame exporters.Its advantages are very obvious:

Simple operation.

The operation process of this machine is very simple, which is the secret of its popularity in various countries.

Put the materials into the hopper of elevator . The no crushing elevator will send the materials into the machine . At first , it will go through the back air screen , or someone called air separator . Here the air will take out the light impurities such as dust , small leaves , shells , strew, etc .

Then , the materials will go through the vibration grader . the vibration grader have 4 layer sieves with different size of holes . it will remove the big and small impurities .

After that , the materials will go through another air screen again to remove the light impurities .

To use this machine , you only need to adjusting the air handle for the two air screen . So it is very easy to operate .

That is why people want to use it .

Suitable for all kinds of light materials.

For example, sesame, sunflower seeds, quinoa, chia seeds, alfalfa seeds, etc. Later, we developed more spices. For example, cumin, fennel seeds, thyme, hibiscus flowers, etc.

Since it go through the air screen two times , so it will separate the light impurities very well .

We sell more than 100 machines of this model every year. Over the years, our customers have spread across various countries, including Nigeria, Burkina Faso, Tanzania, Sudan, Egypt, Kazakhstan and other countries.


Makine Özellikleri

Örnek 5XFS-7.5BC
Güç 9,9 kW
Elek Boyutu 1250*1200mm dört katmanda
Kapasite  7,5t/h (buğday bazlı)
Ağırlık 2000kg
Genel Boyut 4000*2500*3400mm
Gerilim 380V,50HZ,Üç Fazlı



Makine Video

İletişime Geçin
If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

*İsim

Telefon

*E-posta

*Mesaj

FAQs
  • 5XFS-7.5BC Çift Hava Filtreli Temizleyicinin temel işlevi nedir?

    5XFS-7.5BC, tahıl, fasulye ve yağlı tohumlar gibi tarım ürünlerinin ön temizliği ve ince temizliği için tasarlanmıştır. Çift hava ayırma ve titreşimli eleklerin bir kombinasyonunu kullanarak tozu, hafif kirleri, buruşmuş tohumları ve büyük yabancı maddeleri etkili bir şekilde temizler.
  • Bu makinenin işlem kapasitesi nedir?

    Makine, malzemenin türüne ve durumuna bağlı olarak saatte 5 ila 7,5 ton işleme kapasitesine sahiptir. Orta ölçekli çiftlikler, tohum işleme üniteleri ve tahıl işleme tesisleri için idealdir.
  • Çift hava perdesi sisteminin avantajları nelerdir?

    Çift hava temizleme sistemi iki aşamalı hava ayırma sağlar. İlk aşama toz ve kabuk gibi daha hafif kirleticileri giderirken, ikinci aşama içi boş tohumları ve hafif samanı daha fazla ayırır. Bu, daha yüksek temizleme hassasiyeti ve ürün saflığı ile sonuçlanır.
  • Makinenin kullanımı kolay mı?

    Evet. Makine sezgisel bir kontrol paneli ve ayarlanabilir ayarlarla donatılmıştır. Operatörler asgari eğitimle makineyi verimli bir şekilde çalıştırabilir ve bakımını yapabilir. Günlük bakım, ekranların temizlenmesini ve temiz hava kanallarının sağlanmasını içerir.
  • Makine buğday, soya fasulyesi, susam gibi farklı ürünlere göre ayarlanabiliyor mu?

    Kesinlikle. 5XFS-7.5BC, farklı tohum türlerine ve boyutlarına uyacak şekilde hava akışının, elek tipinin ve elek açısının kolayca ayarlanmasını sağlar. Buğday, mısır, fasulye, susam ve sorgum dahil olmak üzere çok çeşitli ürünler için uygundur.
