5XZ Yerçekimi Ayırıcı

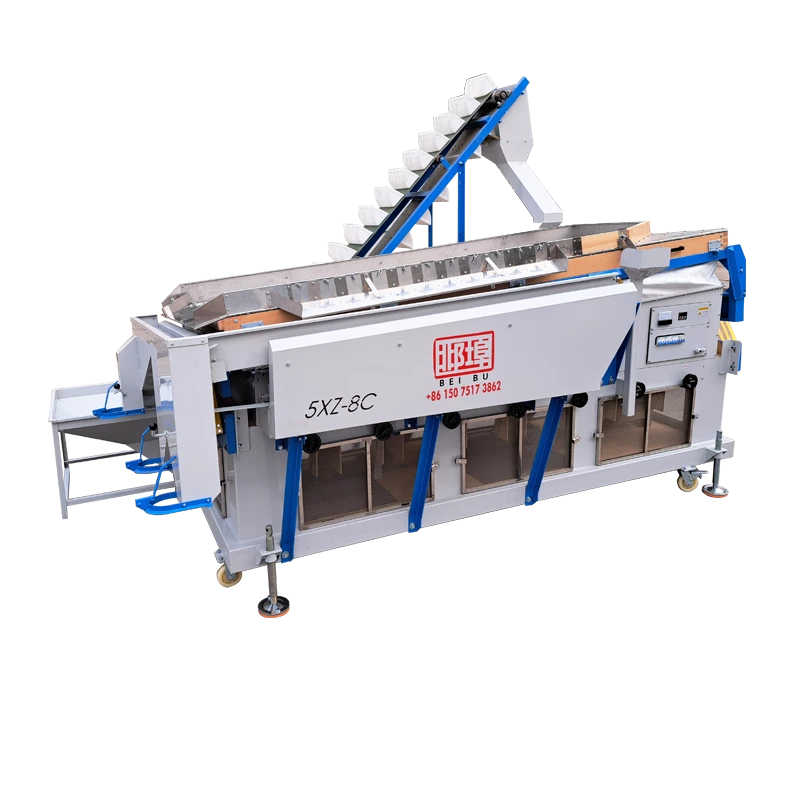

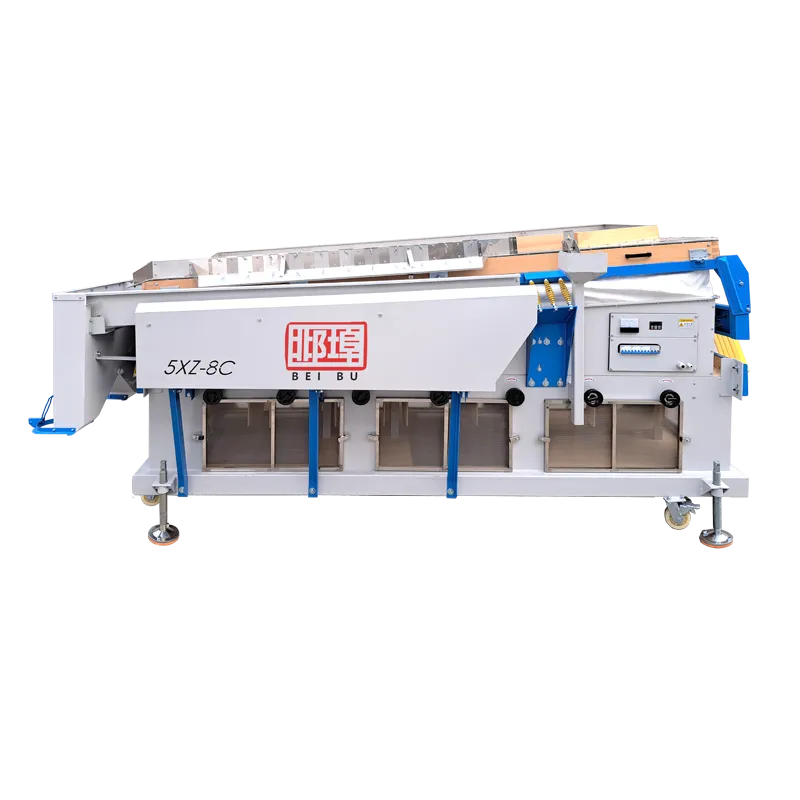

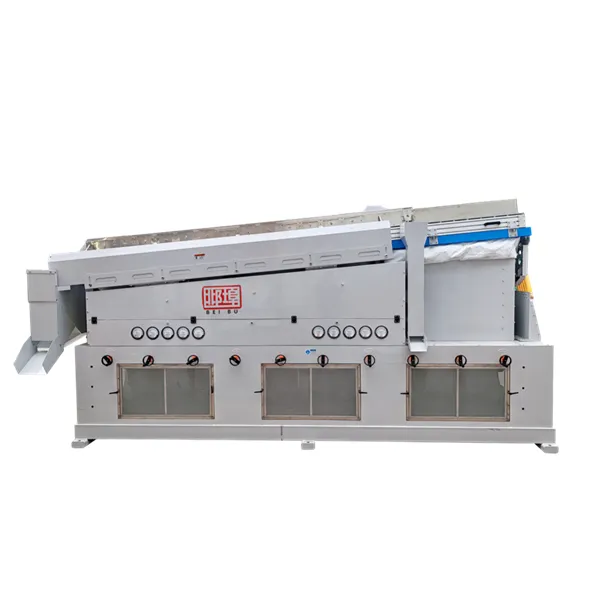

The 5XZ-8 Series Gravity Separator based on different capacity,we have three models,5XZ-8 Gravity Separator,5XZ-8C Gravity Separator,5XZ-15 Gravity Separator;

Yerçekimi Ayırıcısı iyi tahıl ve tohumları kötü olanlardan ayırmak içindir, kötü olanlar küflü, bozulmuş, içi böcekli vb. olacaktır;

Gravity Separator usually use for seeds and beans fine cleaning . It have a long history . This machine was originally invented by an American company called Oliver. Fortunately, after various improvements by various companies, it has now become a very mature machine.

Like the stone remover, it mainly includes the following functions: 1. Bracket 1. Fan 2. Gravity vibrating table.

The bracket is used to support the entire machine so that each function can work.

The Fan is to provide the air for the machine . it have 7 sets .

The gravity table is made of frame and it’s net .the net is stainless . At the same time, a layer of perforated screen is also included under the net . Usually, it is placed at an angle.

When working, the fan blows air upwards. The wind passes through the screen and net of the gravity table and blows the seeds into the air. The screen helps to make the wind more even. The net is used to hold the seeds, allowing wind to pass through but preventing the seeds from falling.

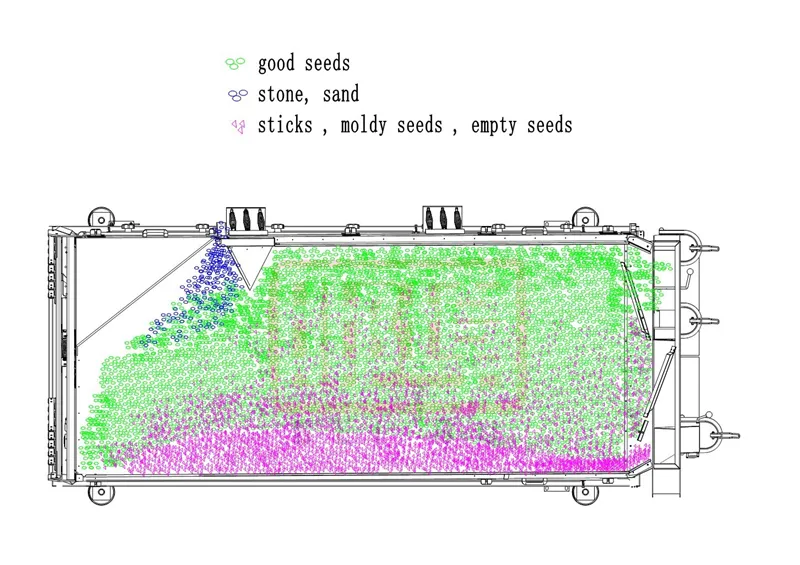

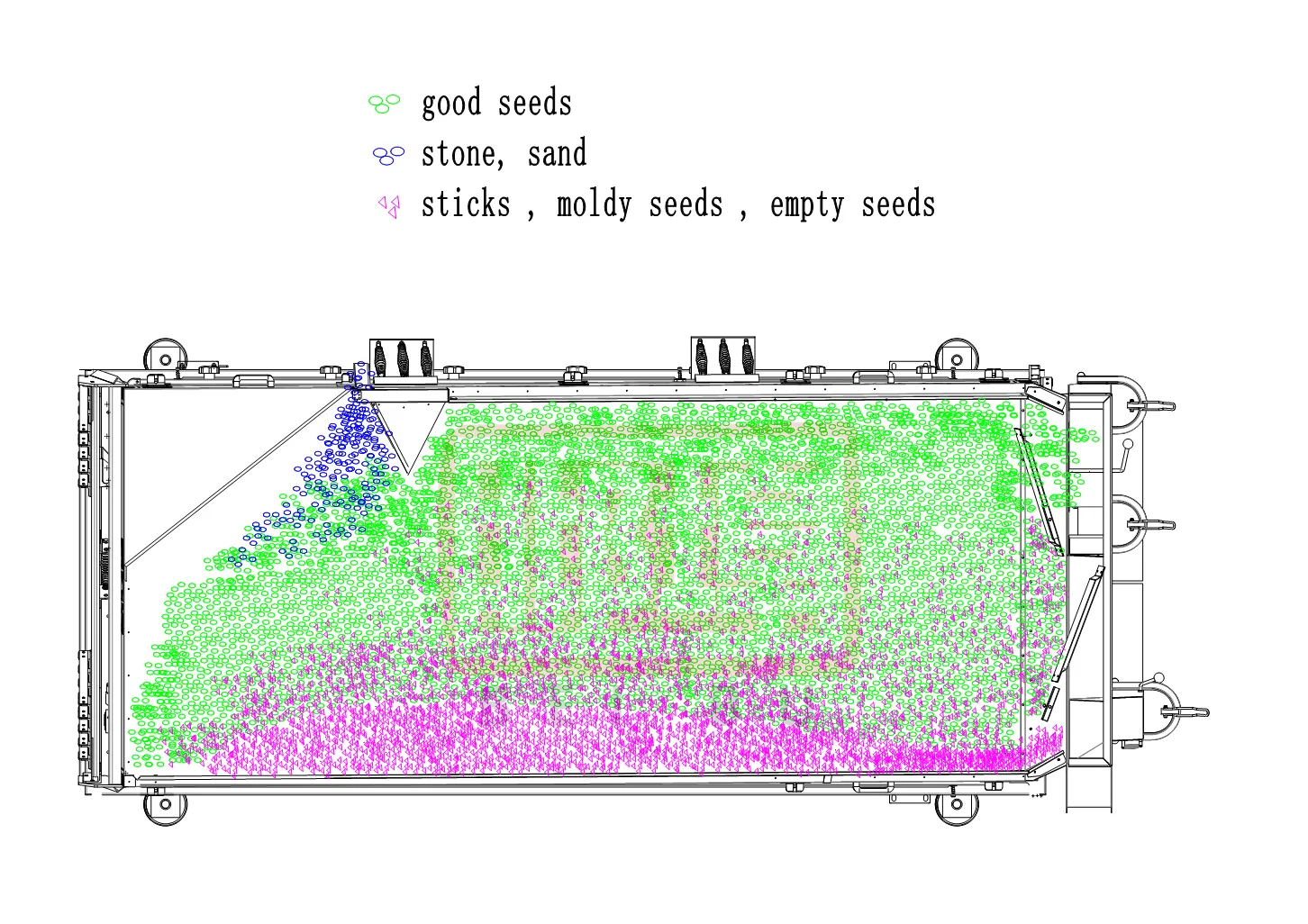

Generally speaking, there is a difference in weight between good seeds and bad seeds. For example, moldy seeds, insect-eaten seeds, straw, broken seeds, etc. Due to the difference in weight, when the wind blows towards them, the good seeds are at a lower position, while the impurities are at an upper position.The good seeds at the lower layer climb upwards due to the vibration and friction of the gravity table. The impurities at the higher layer can only flow to the lower end of the gravity table due to the lack of friction. Therefore, the two can be separated.

The specific gravity separator is a very sophisticated machine. After using different machines to remove other impurities, this machine can very accurately separate various impurities with tiny weight differences.
