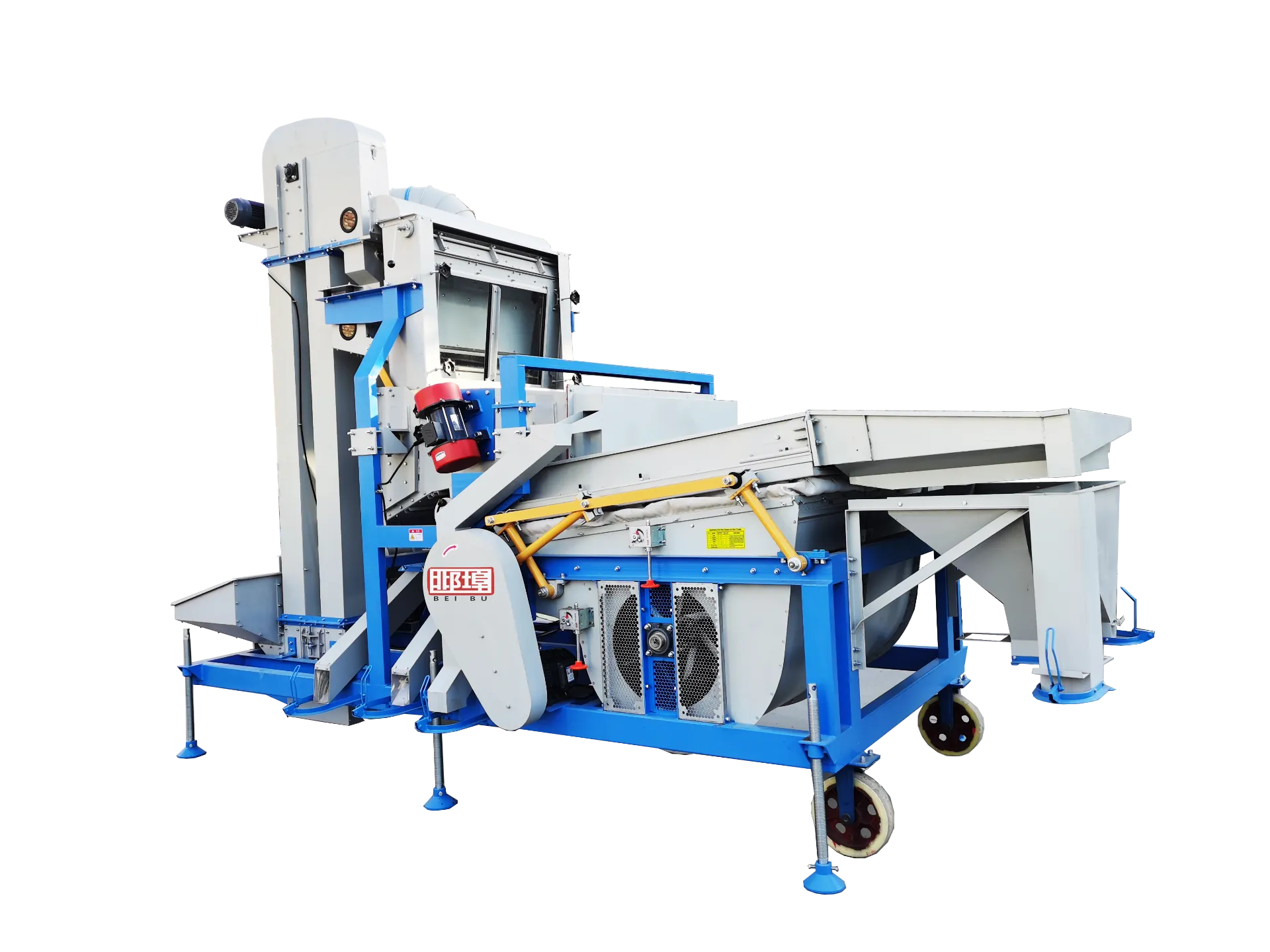

5XFZ-25SC Air Screen Cleaner with Gravity Table

5XFZ-25SC Air Screen Cleaner with Gravity Table is the mulit funtions machine including air screen,sieves,gravity table for removing different impurities to improve the purity.

This is a commonly used comprehensive grain cleaning machine. It is also called a sesame cleaning machine, a bean cleaning machine. The machine can use for different grain and seeds,like sesame,soybean,wheat,maize,green mung  bean , faxseed, chickpeas , sorghum , etc.

Compare with the air screen cleaner , this machine have one more function : gravity table----gravty separator . this function will help the owner to remove the moldy seeds , sticks and other light impurities in one machine . This function can never done by the air screen cleaner . Because these impurities may be same size with the good seeds .

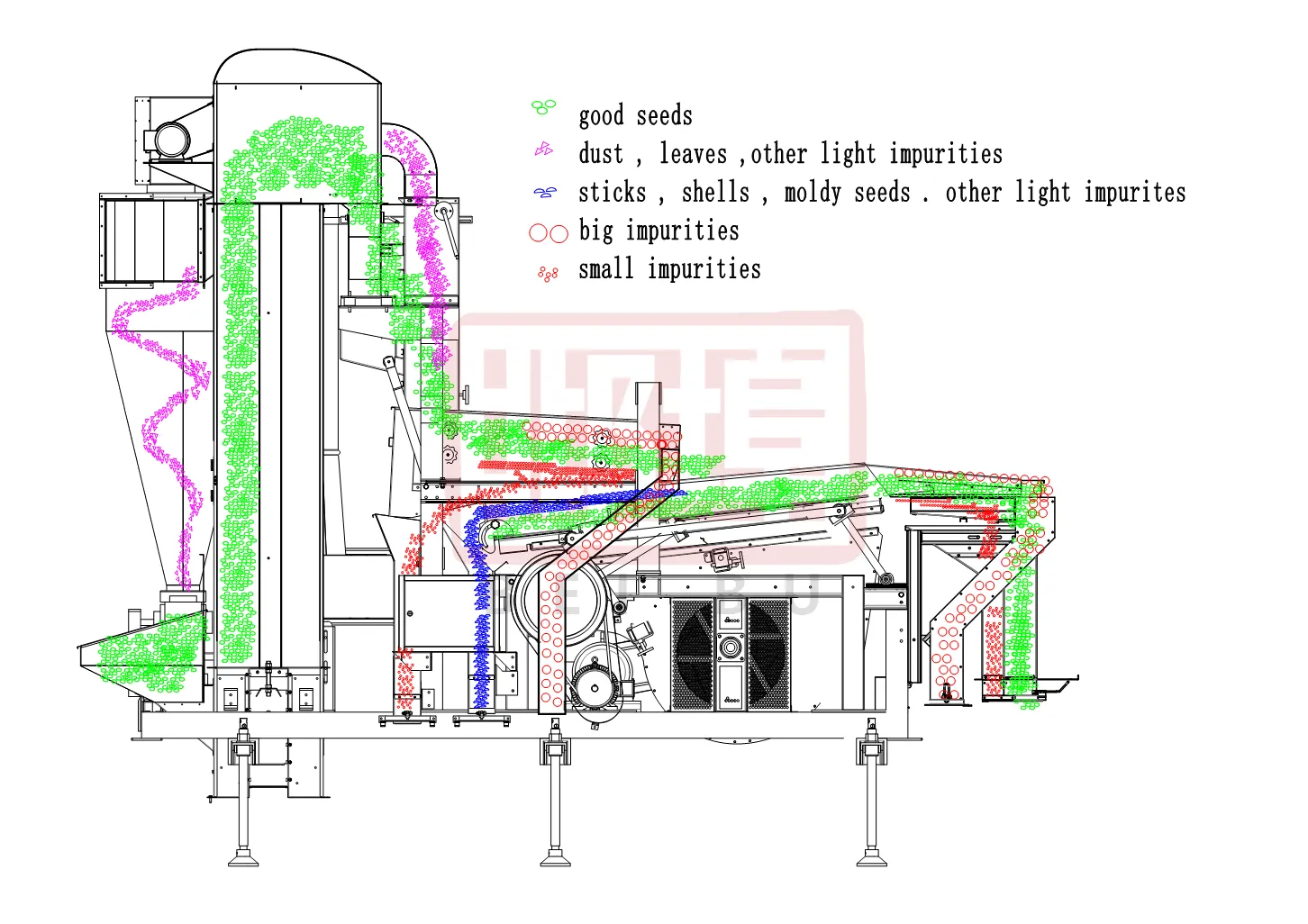

When use hte machine , The raw grain go to machine by elevator . It will go through the vertical air screen cleaner which will remove the dust and light impurities ;

Then the grain will go to the small vibration box which got two layers can remove the big and small impurities;

After that the grain will go to the gravity table which can remove the small sticks,lighted,moldy and insected grain;

Finally it will go to the half back sieves which can remove the big and small impurities again.

Regarding the capacity , this machine can clean 8-10 tons of corn, wheat and other materials per hour. For more difficult materials, such as sesame, it can reach 5 tons per hour. This allows customers to get 2-3 containers or trucks of products every day, which is a very suitable number.

With this machine, you can basically get grains with a purity of more than 99%. This is sufficient for customers who do not require very fine processing.

In general, customers can get a machine with three functions ( air separator , sieves and gravity table ) at a relatively favorable price. In addition, if a higher purity is required later, a de-stoner , gravity separator , magnetic separator and other machines can be directly added later.
