5CX Magnetic Separator

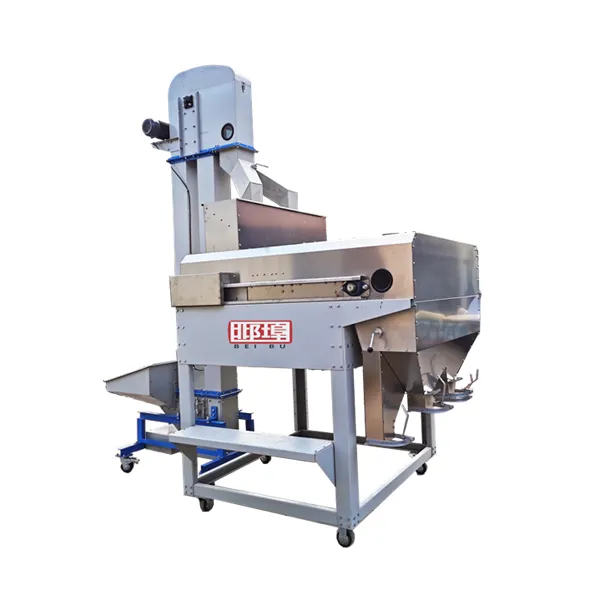

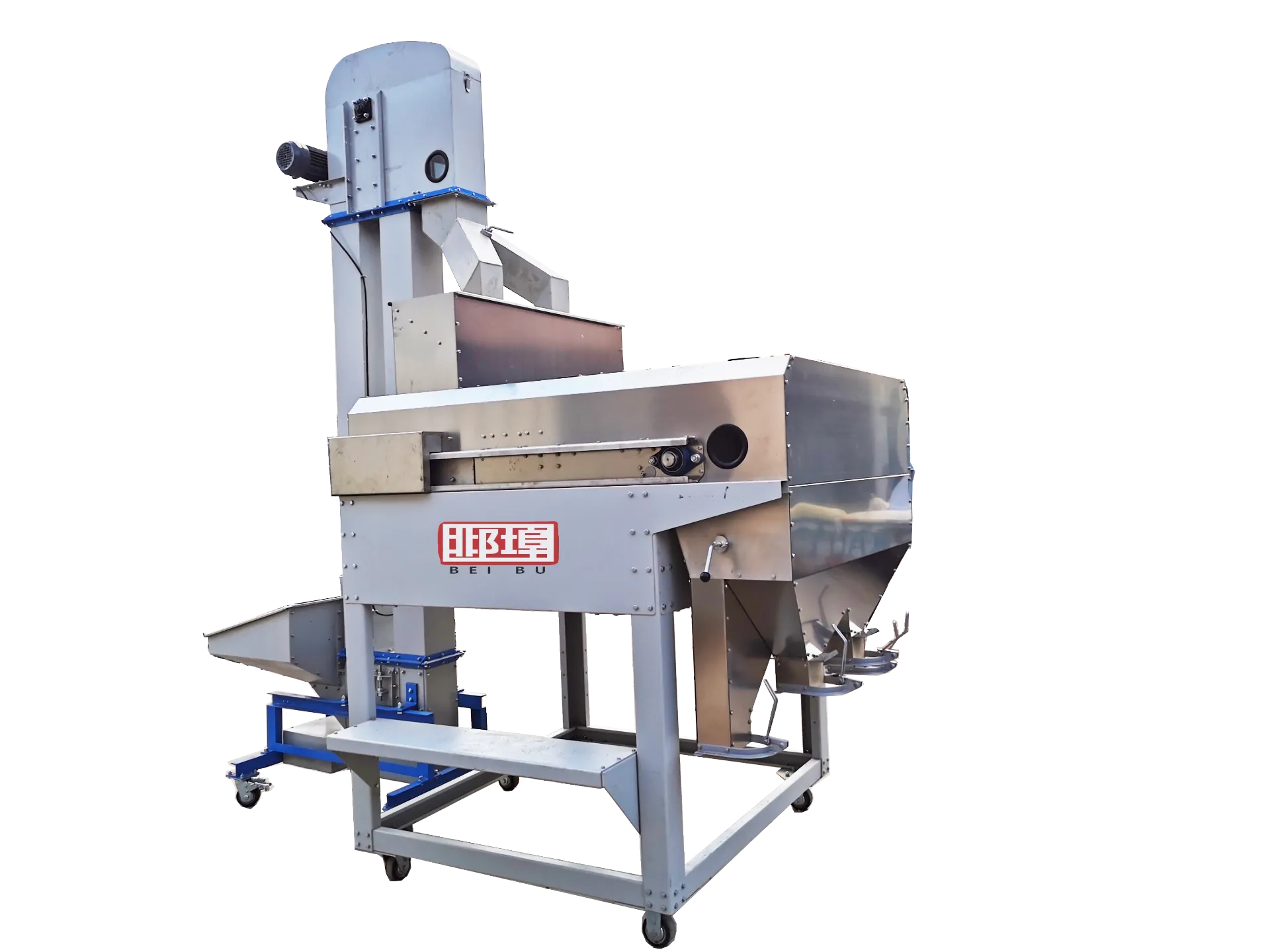

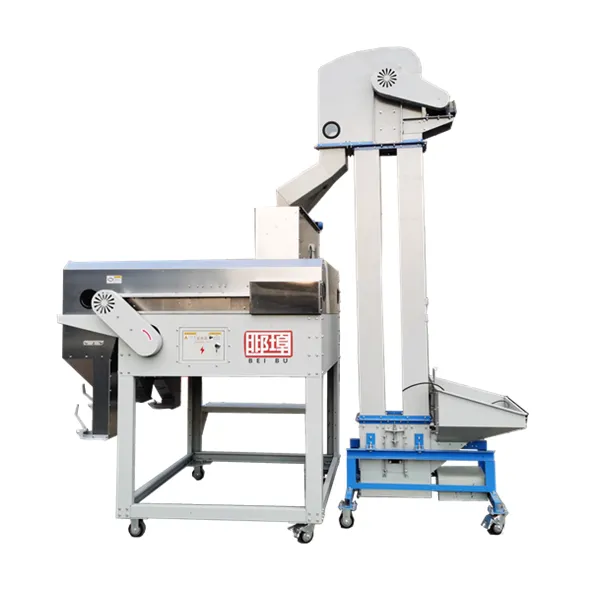

5CX Series Magnetic Separator

Machine Grain Flow Chart

Machine Application

The 5CX Series Magnetic Separator based on different capacity have two types,5CX-5 Magnetic Separator and 5CX-10 Magnetic which use for separating the hard clods and soil out from grain,seeds and beans;

The 5CX Series Magnetic Separator is stainless steel,with 18000 gauss magnet , which will protect the people outside .Some companies use ordinary carbon steel for the casing, which is likely to lead to adverse consequences.

The machine can work for different grain and seeds,now is mainly for beans to separate the hard soils out.

So how does it work?

If you know enough about destoners, you will know that it is easy to remove impurities such as stones and sand. But it is almost impossible to remove soil clods. Because soil clods and seeds have the same weight. At this time, a genius idea came out: magnetic separator.

Well-known, The iron content in the earth is 5.8%, These iron elements are widely distributed in the soil. This makes the soil easily attractive by magnets. As long as the magnet is strong enough, you can divide it out.

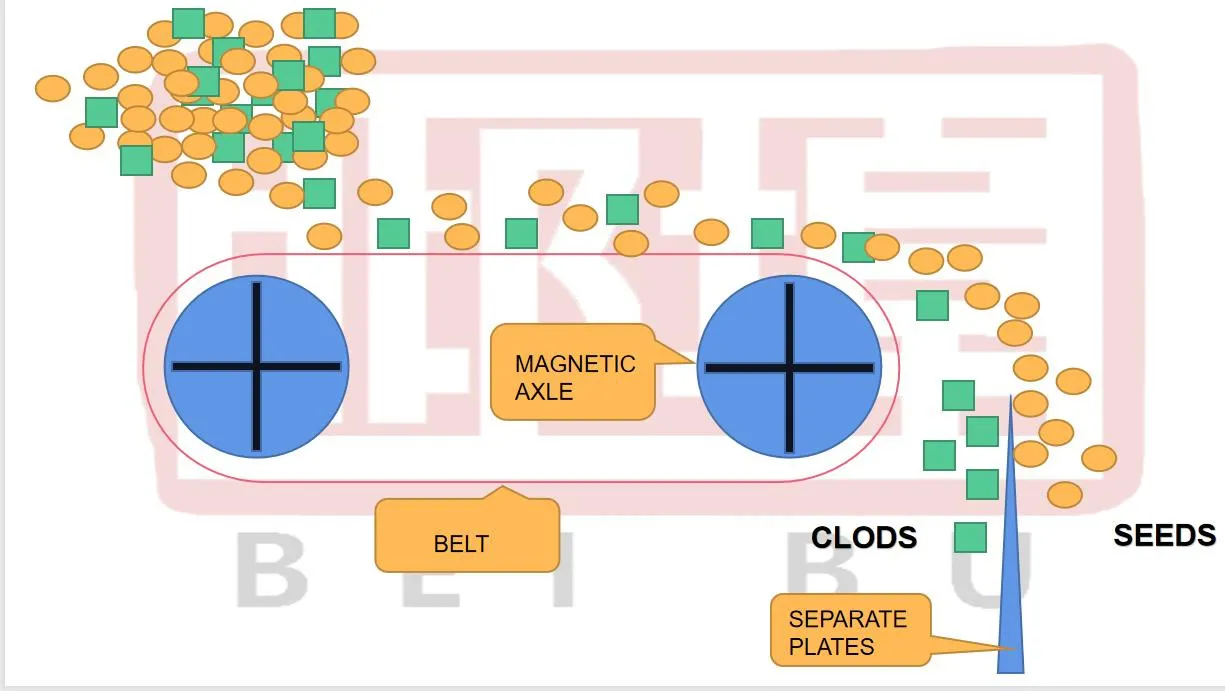

In the magnetic separator, we use a super-strong magnetic roller to drive the belt to rotate. Put the seeds and soil together on the belt and make it move. At the end of the belt, the seeds will make a parabolic motion and fall down. At this time, due to the attraction of the super-strong magnetic roller, the movement trajectory of the soil will be disturbed, while the seeds will not be affected. Therefore, the magnetic separator can separate the seeds from the soil.

Compared to the destoner, this machine is a very new one. Many customers have not seen it. But once they have seen it, they like it very much.

This has led to many South American customers liking this machine, but not too many sales in Africa (except Ethiopia). We are committed to promoting this machine so that customers can use better machines and people can eat cleaner grains.

Machine Specification
