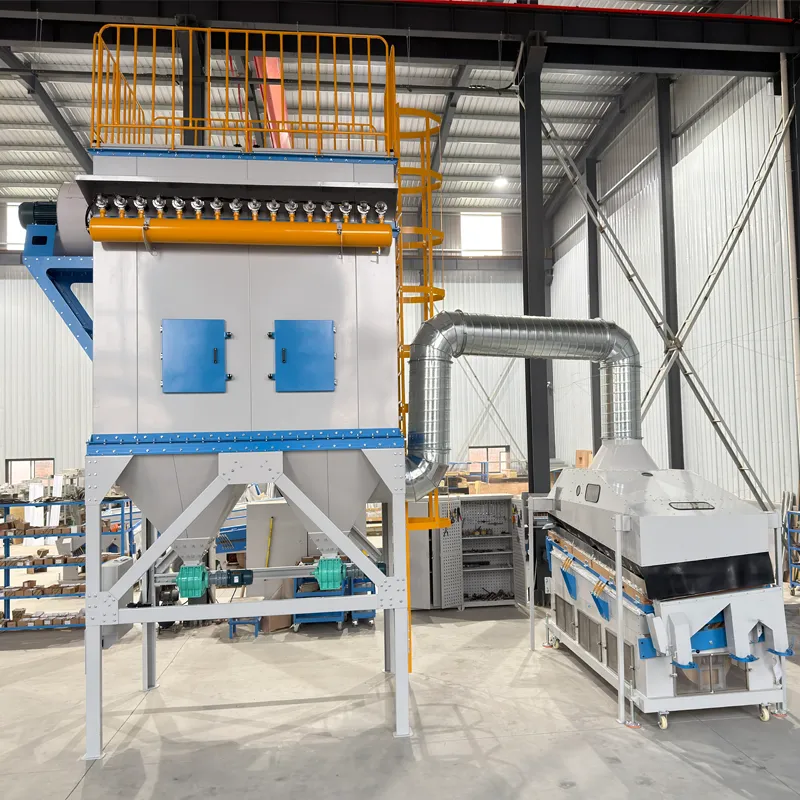

BEIBU Pulse Dust Collector: High-Efficiency, Intelligent Dust Removal Solution for Grain Cleaning machine

BEIBU Pulse Dust Collector: High-Efficiency, Intelligent Dust Removal Solution for Grain Cleaning machine

BEIBU's newly developed pulse dust collector is designed specifically for sesame and pulses cleaning production lines such as grains, sesame seeds, and beans.  It features easy installation, high efficiency, and an aesthetically pleasing design, significantly improving the cleanliness of the production environment, protecting worker health, and optimizing production processes.

1. What is a pulse dust collector?
2.

A pulse dust collector is a highly efficient air purification device primarily used to remove dust, debris, and other fine particles generated during grain cleaning. Its core working principle is as follows:

(1) Filtration Stage

Dust-laden air enters the dust collector through the inlet.

Dust is intercepted by the filter bags (or cartridges), while clean air passes through the filter media and is discharged from the outlet.

(2) Dust Removal Stage (Key Advantage)

When a certain amount of dust accumulates on the surface of the filter bags, the control system triggers the pulse jet cleaning device.

Compressed air is instantly injected into the filter bags through a solenoid valve, creating a strong airflow impact that dislodges the dust attached to the filter bags.

The dislodged dust falls into the dust collection hopper and can be cleaned periodically or automatically discharged.

Compared to traditional baghouse dust collectors, pulse dust collectors use automatic cleaning technology, eliminating the need for downtime for cleaning, allowing for continuous and efficient operation, making them particularly suitable for high-dust environments.

2. Why choose a pulse dust collector? Advantages Compared to Ordinary Baghouse Dust Collectors

Comparison Item | Pulse Dust Collector | Ordinary Baghouse Dust Collector

Dust Removal Method | Automatic pulse jet cleaning | Requires manual shaking or reverse blowing after shutdown

Filtration Efficiency | ≥99.9% | Approximately 95%~98%

Operational Stability | Can operate continuously for 24 hours | Requires frequent shutdowns for maintenance

Energy Consumption | Low (intermittent jetting) | Higher (continuous reverse blowing)

Maintenance Costs | Long filter bag life, long replacement cycle | Filter bags are easily clogged, frequent replacement required

Applicable Scenarios | High dust, continuous production | Low dust, intermittent operation

Summary of Core Advantages:

High-efficiency filtration: Using high-quality filter materials, dust capture rate ≥99.9%, meeting environmental standards.

Intelligent dust removal: PLC control, timed/pressure-controlled automatic jetting, no manual intervention required.

Energy saving and consumption reduction: Intermittent compressed air jetting, saving more than 30% energy compared to traditional dust collectors.

Long-life design: Filter bags are made of anti-static and wear-resistant materials, with a service life of up to 3-5 years.

Modular structure: Flexible installation, adaptable to cleaning production lines of different scales.

3. How to equip a sesame and bean cleaning production line with a pulse dust collector?

BEIBU pulse dust collectors can perfectly match sesame and bean cleaning equipment (such as 5XFZ cleaning machines, 5QS destoners, etc.). The specific solution is as follows:

(1) Customized Services

Adjust dust collector size according to customer factory space

Optional explosion-proof type (suitable for high-dust flammable environments)

Supports remote monitoring (real-time viewing of operating status)

(2) Installation and After-Sales Service

BEIBU provides on-site installation guidance

1 year of free maintenance included

Global parts supply to ensure quick response

4. Conclusion

With its high efficiency, intelligence, and energy-saving features, the BEIBU pulse dust collector has become the preferred solution for the grain cleaning industry. Whether for sesame, beans, or other agricultural product processing, it can effectively reduce dust pollution and improve production safety and efficiency.
